Red Bull RB18

A place to discuss the characteristics of the cars in Formula One, both current as well as historical. Laptimes, driver worshipping and team chatter do not belong here.
Just_a_fan
Just_a_fan
593
Joined: 31 Jan 2010, 20:37

Re: Red Bull RB18

Post

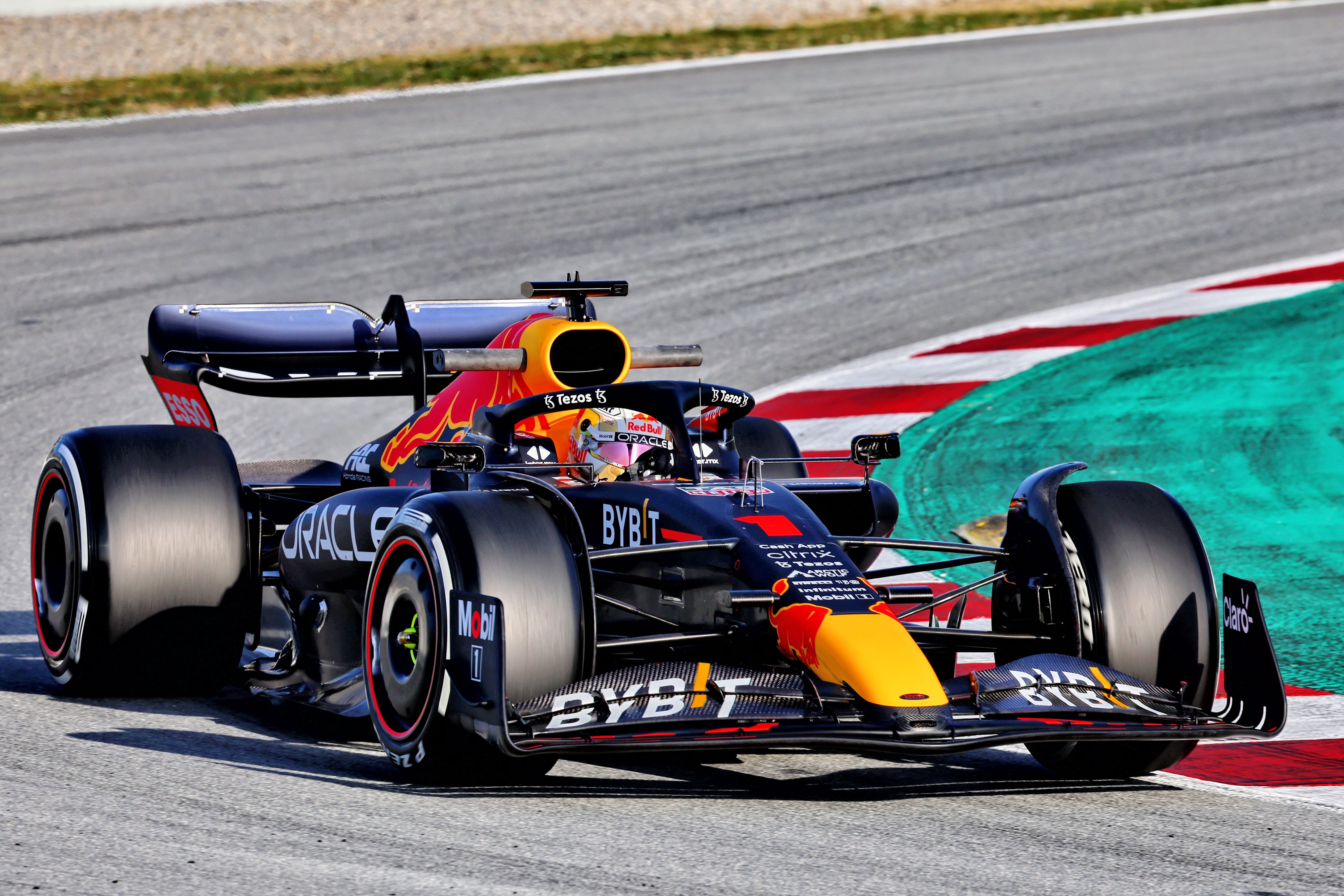

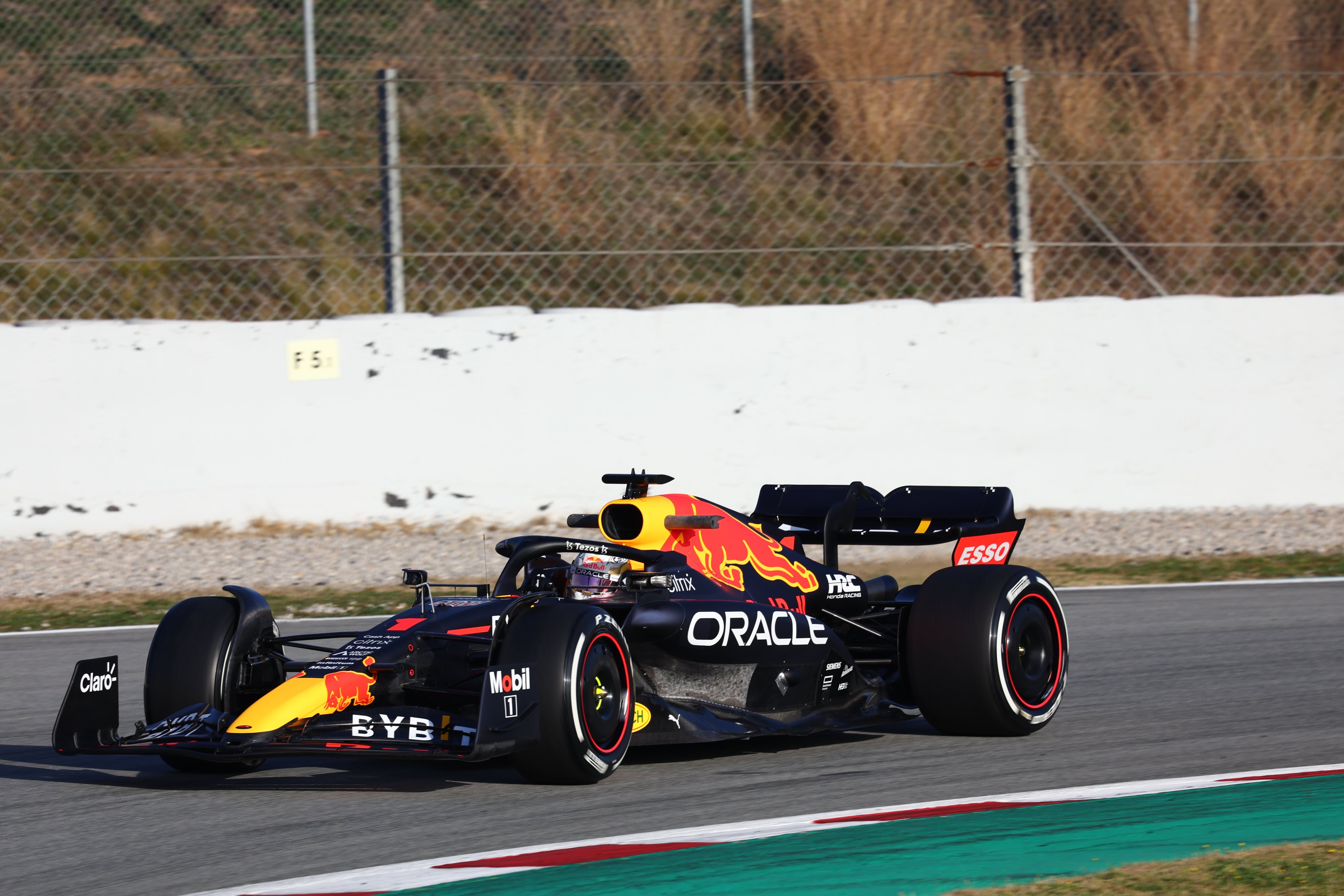

RedBull have gone to extremes to push the front tyre wake outwards. The double blade bargeboard outer strake, the extreme undercut with the sidepod maximum width a long way back. The bottom lip of the sidepod intake helping create a long channel.

It's going to be interesting to see if this car is difficult for others to follow - It's the most extreme attempt to flout the "no throwing the wake wide" rules so far.
If you are more fortunate than others, build a larger table not a taller fence.

JPBD1990
JPBD1990
49
Joined: 22 Feb 2018, 12:19

Re: Red Bull RB18

Post

Is it me or is this actually pretty similar to the Ferrari concept? Kyle.engineers commented that Ferrari are using the sidepod inlet as a wing, which clearly redbull have taken to the extreme. Then front undercut, then swoops out wide and flat along the side.

Redbull obviously going for downwash off the top of the sidepod to the rear while Ferrari are doing something different there, but everything from the side surface of the sidepod down seems similar - top surface very different.

User avatar
AeroDynamic
349
Joined: 28 Sep 2021, 12:25
Location: La règle du jeu

Re: Red Bull RB18

Post

Last edited by AeroDynamic on 23 Feb 2022, 10:57, edited 7 times in total.

User avatar
LegendaryM
3
Joined: 11 May 2009, 21:56

Re: Red Bull RB18

Post

Looks like they are running 2 of their 4 floor strakes in the out board, longer legality volume to act as bargeboards
MRVC: Tolo Racing

User avatar
ojir19
38
Joined: 21 Feb 2022, 07:40

Re: Red Bull RB18

Post

scheffers wrote:
23 Feb 2022, 10:21
AriaanGert wrote:
23 Feb 2022, 10:19
Doesn't the car look unfinished?

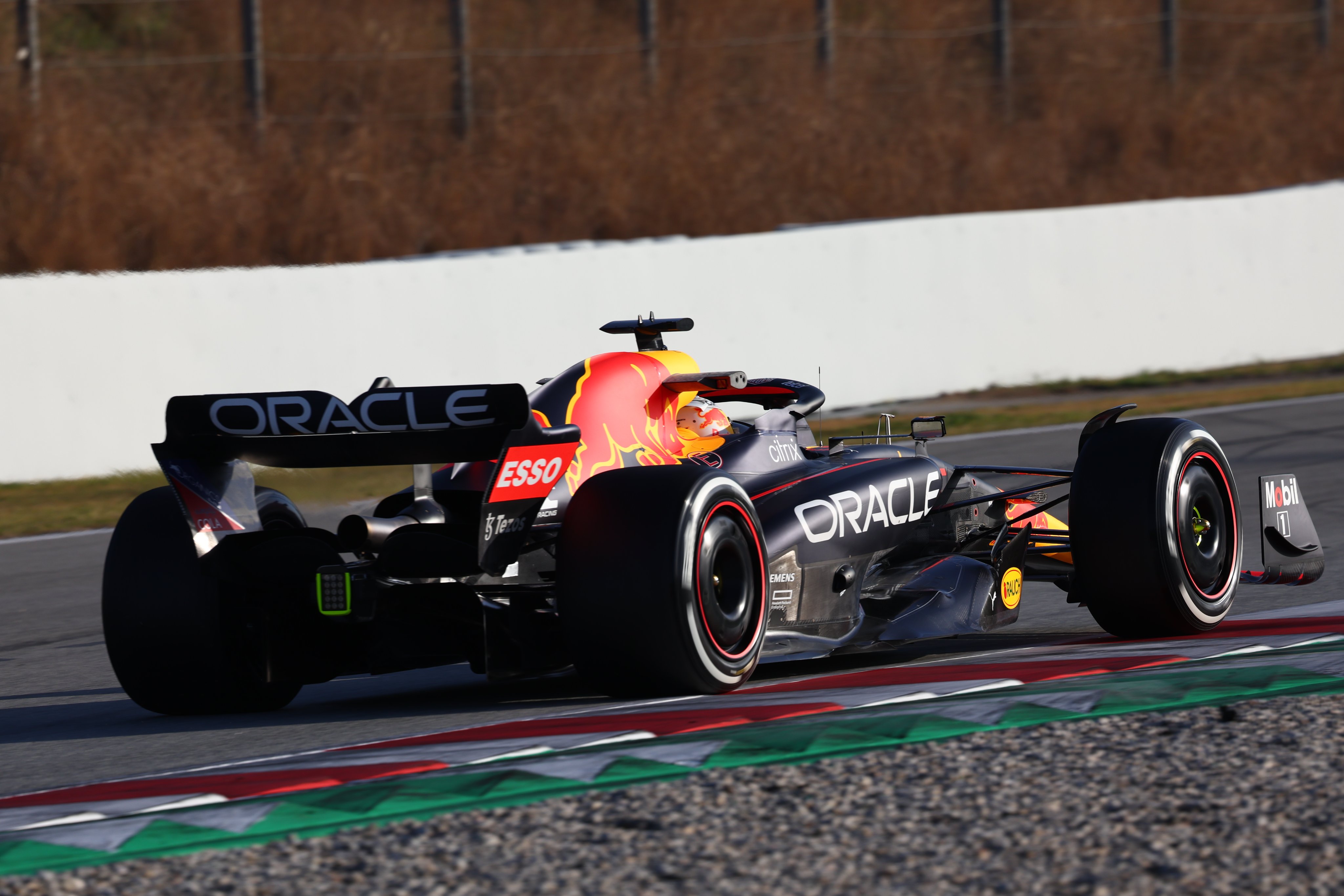

interesting 'kevlar' looking undercut sidpod there , you'd think it would be carbon like the rest of the bodywork? no expert here..
some heat related issues I believe, perhaps some Pyrosic coating (?) ..... the inside must be so crowded & tight packaging that it generated more heat and wont let painting on the outer skin
okhörosinc bandhi-bandhi, mœnoghujlu sil ɥmhpleöng, kêmphád chømu kwærthwono

timbo
timbo
111
Joined: 22 Oct 2007, 10:14

Re: Red Bull RB18

Post

Interesting strakes. The outward angle is much less pronounced than on the other cars.
So it seems they try to get a very clean and energetic flow into the undercut - also helped by the pull-rod front suspension - and divert it outside somewhat later.

Just_a_fan
Just_a_fan
593
Joined: 31 Jan 2010, 20:37

Re: Red Bull RB18

Post

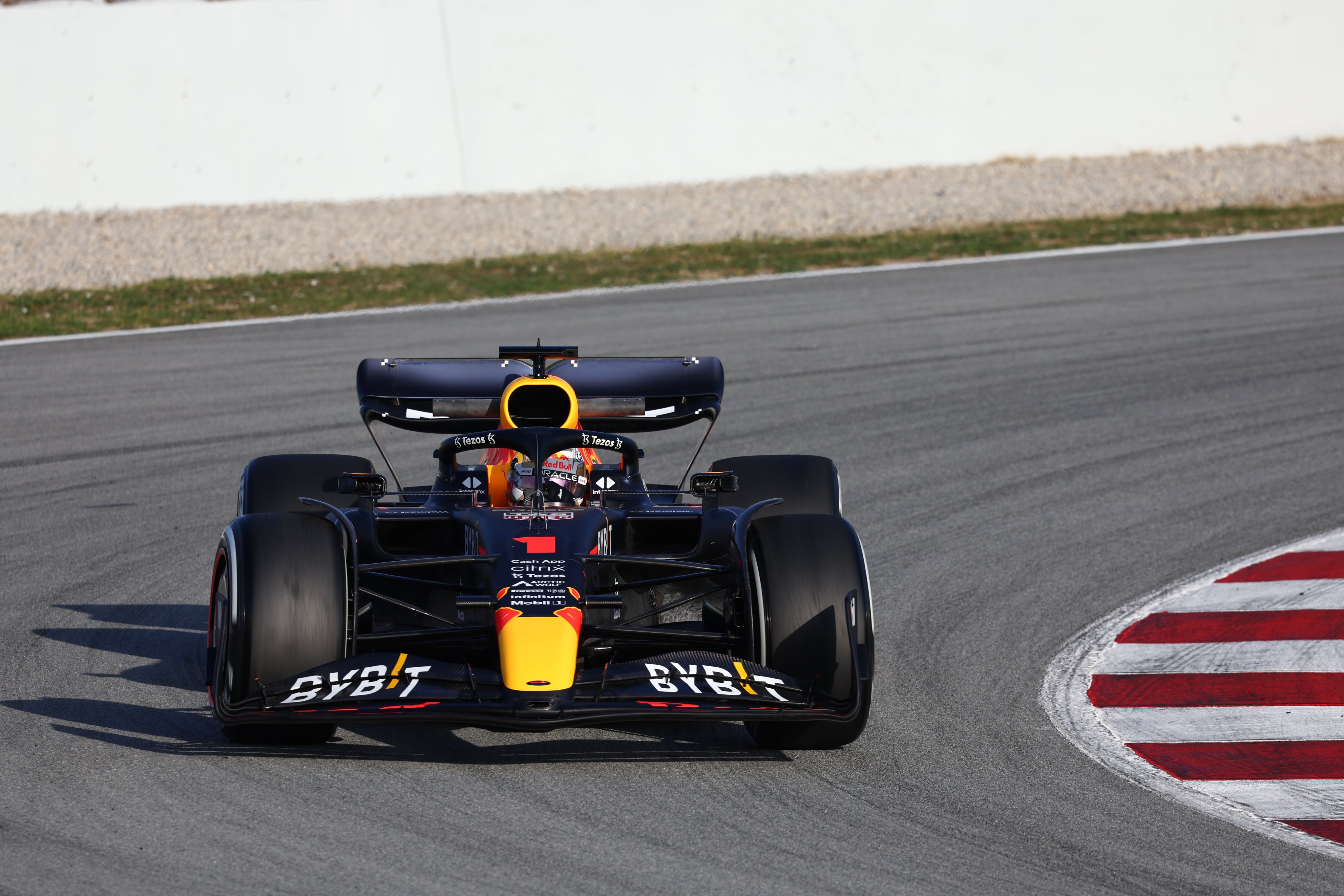

Front suspension very interesting. Front upper wishbone mounted to the top of the tub, rear one mounted very much lower. Steering arm mounted at the same level as the lower wishbone arms.
If you are more fortunate than others, build a larger table not a taller fence.


Peter Ian Staker
Peter Ian Staker
5
Joined: 16 Feb 2022, 16:20

Re: Red Bull RB18

Post

This seems to have almost every single trick the other car have all at once and then some.

timbo
timbo
111
Joined: 22 Oct 2007, 10:14

Re: Red Bull RB18

Post

The upper wishbone is insane! The rear leg is not only at an extreme angle but also very thin.

User avatar
DAMNINice
37
Joined: 16 Feb 2012, 08:50

Re: Red Bull RB18

Post

AOA wise they seem to run a lot less DF by the front wing itself compared to Merc which has a quite similar middle loaded philosophy.
This might mean that they are very comfortable with the floor DF they are creating.
REal men play with twins!

User avatar
ojir19
38
Joined: 21 Feb 2022, 07:40

Re: Red Bull RB18

Post

:D

okhörosinc bandhi-bandhi, mœnoghujlu sil ɥmhpleöng, kêmphád chømu kwærthwono

User avatar
DAMNINice
37
Joined: 16 Feb 2012, 08:50

Re: Red Bull RB18

Post

on another sidenote...
This concept seems to be a lot dependand on a constant airflow and direction to manage the air which goes ointo the sidepods for cooling.
It will be interesting to see if the car will struggle with overheating on very windy days (backwind) or following behind cars.
Last edited by Thunder on 23 Feb 2022, 10:38, edited 1 time in total.
Reason: removed OT
REal men play with twins!

User avatar
NicoS
-2
Joined: 11 Feb 2022, 17:21

Re: Red Bull RB18

Post

FW17 wrote:
23 Feb 2022, 10:15
Pushrod rear?

https://i.imgur.com/zhPBiVx.png
The amount of open floor real estate under the sidepod intakes are just insane!

morefirejules08
morefirejules08
4
Joined: 11 Feb 2012, 14:21

Re: Red Bull RB18

Post

Incredible that Redbull have pulled this off with a budget cap and while developing the 2021 car
