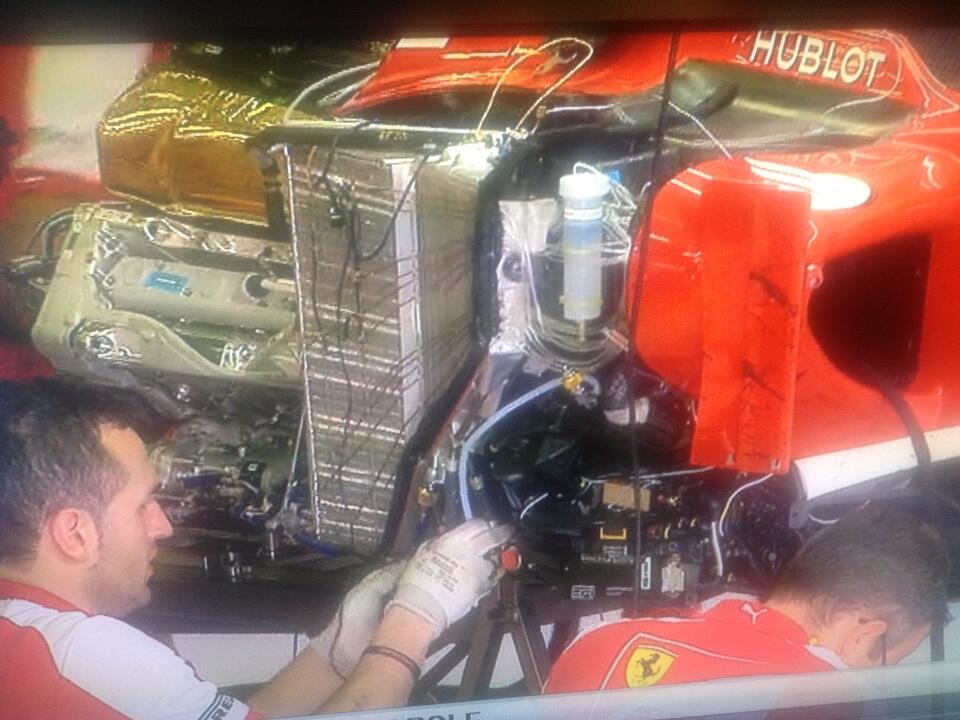

looks like they got rid of the stiffening bar over the engine...Forza wrote:Australian GP - Thursday - 14/3/2013
http://i.imgur.com/eoHxT7c.jpg
http://i.imgur.com/iXBky9m.jpg
- Login or Register
No account yet? Sign up
Team: Pat Fry (TD), Nikolas Tombazis (CD), Stefano Domenicali (MD), Simone Resta (DTD), Corrado Lanzone (Head of production)
Drivers: Fernando Alonso (3), Felipe Massa (4)
looks like they got rid of the stiffening bar over the engine...Forza wrote:Australian GP - Thursday - 14/3/2013
http://i.imgur.com/eoHxT7c.jpg
http://i.imgur.com/iXBky9m.jpg
True. Bodywork at the rear end looks quite different.nhojekim wrote:Also, they changed their engine cover. Now it's longer almost reaching the beam wing, unlike what we saw in testing.
That's what I meant: only old front wing in the pictures.Consider&Go wrote:No, all the photos depict the old front wing. There haven't been any photos of the new one as of yet. I hope they aren't reverting back to the old one.muelte wrote:Seems they are using the new RW introduced at last test days, but the front wing is not the last one (the 7 planes one with simplified endplates) but the original one with the strakes on the nose sides, am I right?
Also, there seems to be some black tape covering something at the end of the cooling exits behind the exhausts... Looks a bit weird to me, at leasts I didn't notice it before.
maybe they've done this to cope better with cooling...to me the "previous" engine cover was TOO aggressive and too tight...hence probably the cooling issues they had...CBeck113 wrote:They have widened up the engine cover before it drops down past the gearbox, making that area look like its missing something - space. You can even see a bulge above the upper suspension arm.
It is too long I know! Blame FerrariFerrari was one of the first teams to introduce their major upgrade. On the second day of the second test in Barcelona, once the rain had stopped we saw part of the upgrade package, as some more parts were tested in the last day of the test and the rest of the parts will be tested tomorrow Friday 15/03/2013 during free practice of the Australian GP.

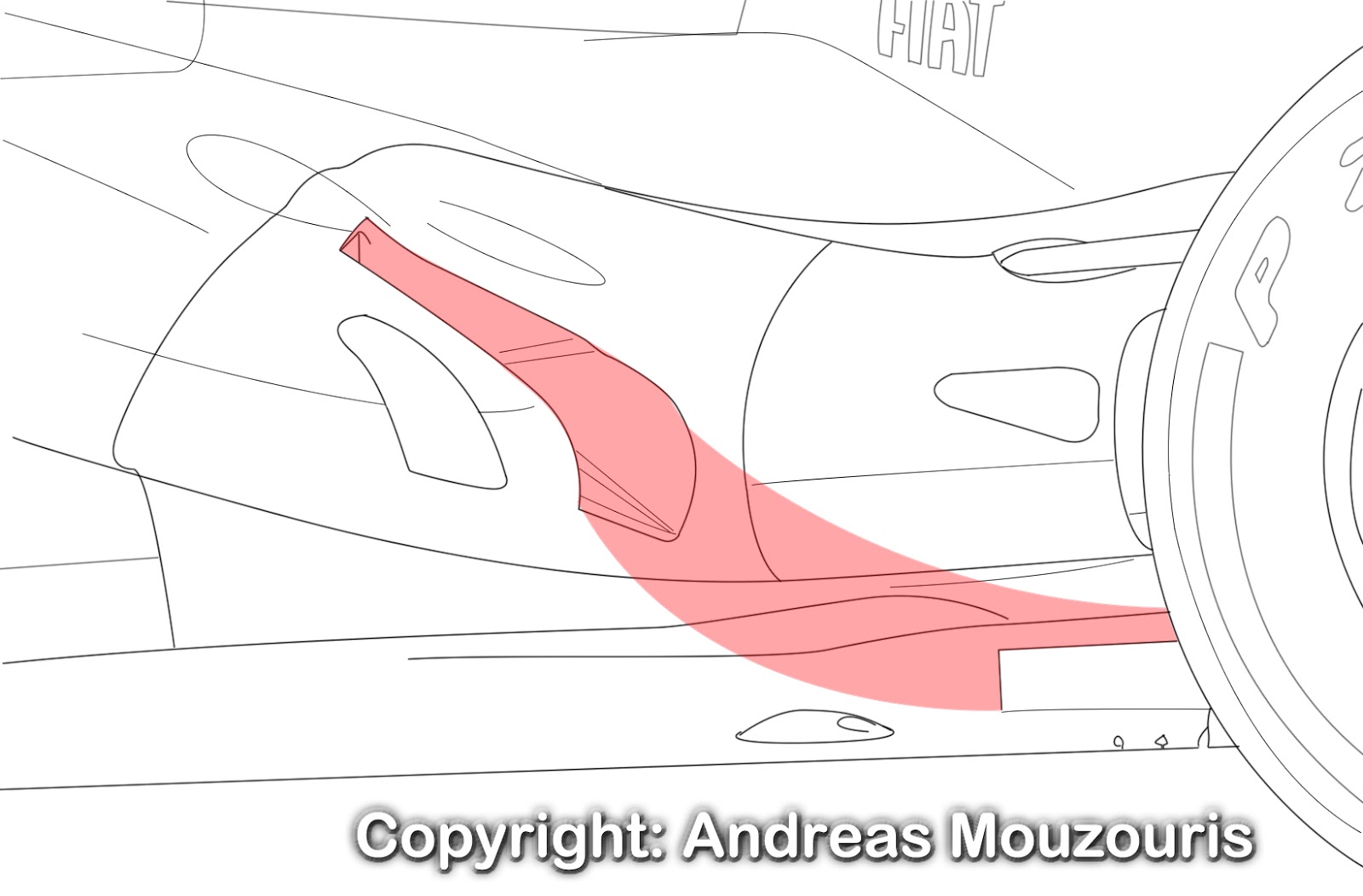

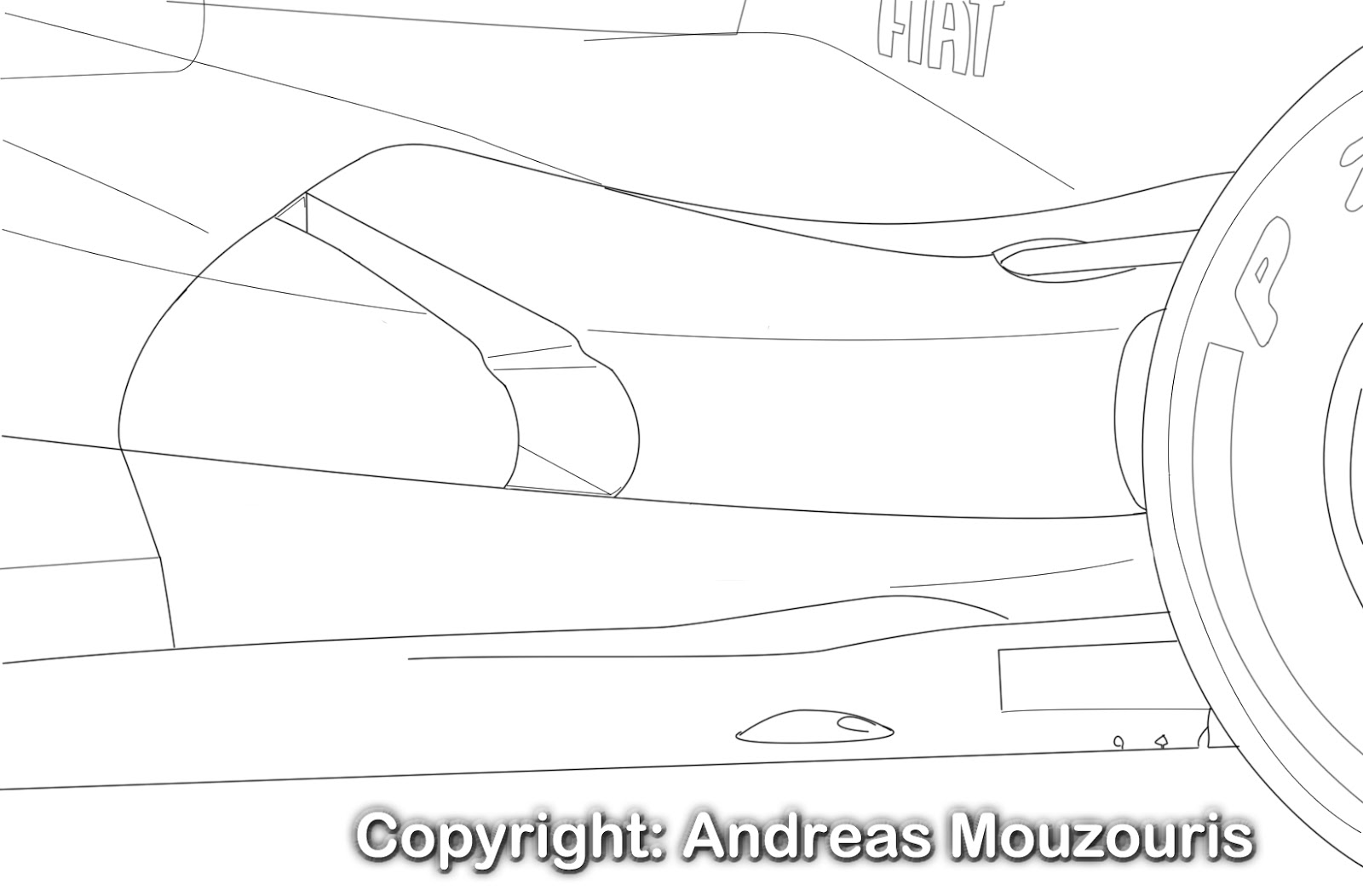

While the concept did not change, the new sidepods now bend down more. As a result the coanda ramp is now lower to better aim the exhaust plume towards the diffuser’s edge.
New Sidepods
Old Sidepods
As well as a changed coanda ramp, the cooling outlets have changed. In the following drawings I have moved the suspension and rear wing so that you can see what has changed more easily.
New Cooling Outlets

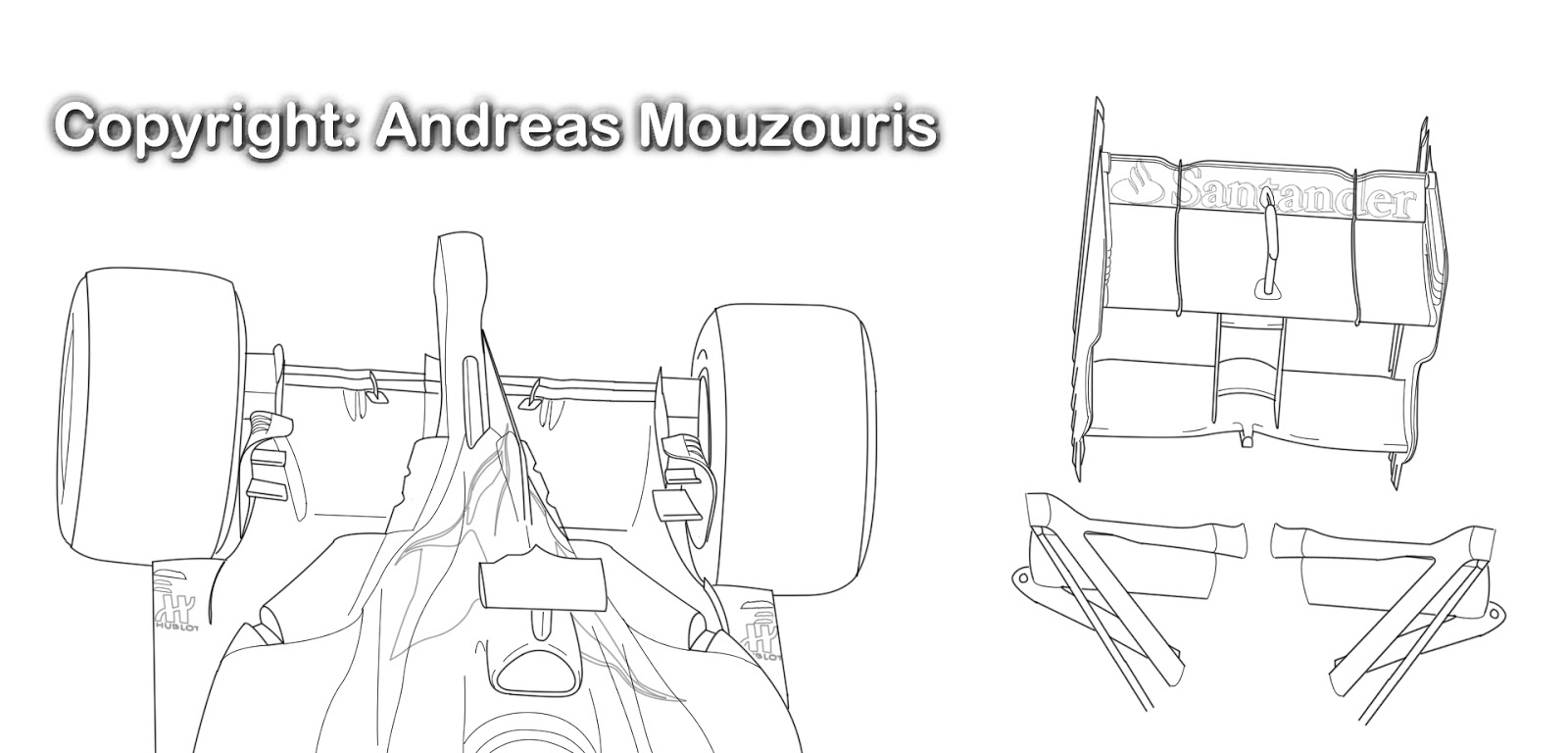

Old Cooling Outlets
The new version sports wider cooling outlets just behind the exhaust and coanda ramp while in the older version they were slimmer. However, in the original version which is very similar to the one present on the F2012, there was a second cooling outlet further back which also featured two cut-outs on each side. The second cooling outlet has now been removed, thus the need for the wider outlets behind the exhaust.
The new front wing was briefly seen on the second day of testing and brought back for the last day.
This new front wing adds yet another element on its outer tips, together with new cascade wings, endplates and the adjustable upper element.
New Front Wing
Old Front Wing
The new element on the outer tips, allows the wing to curve outwards at a larger angle to create more downforce and direct a larger portion of the airflow around the wheels.
The new endplate is covering up a portion of the open area that allowed airflow flowing over the top of the wing to flow to the outside. This will create more downforce. As well as the new endplate, the footplate now features a slot which is an innovation by Ferrari it is the first time seen on a car, ever.

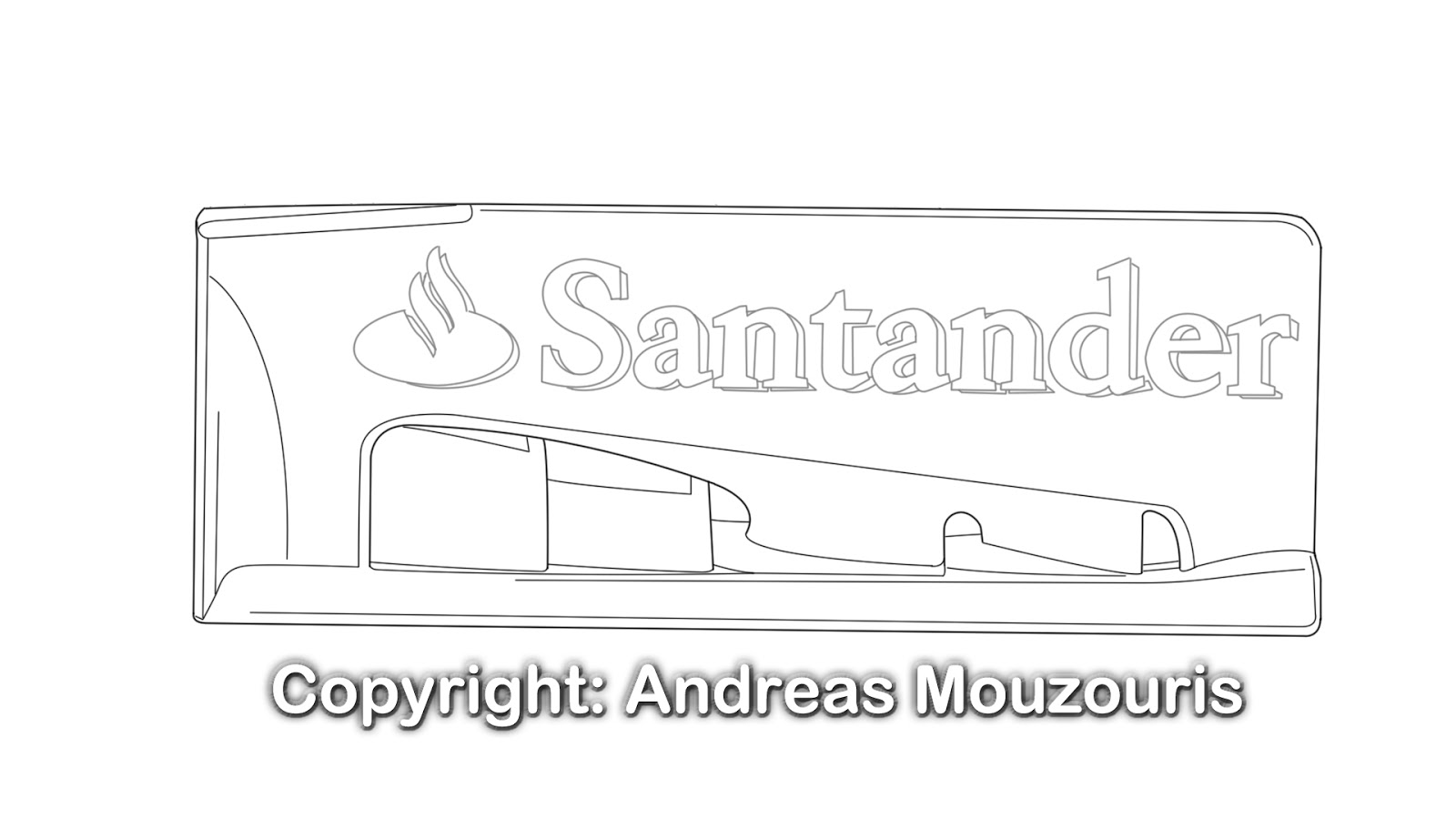

New FWEP
Old FWEP
The new cascade element is no longer divided into two different parts, instead it is one winglet only much wider than before. The fence that divided the two cascade elements on the older version has now become a vertical fence which will induce a stronger vortex in the attempt two direct the airflow around the front wheels as efficiently as possible.
At the top of the endplate a smaller winglet has been added, similar to the one used by Red Bull.
The inner adjustable element of the wing has been revised, with its inner extremities now taller than before.

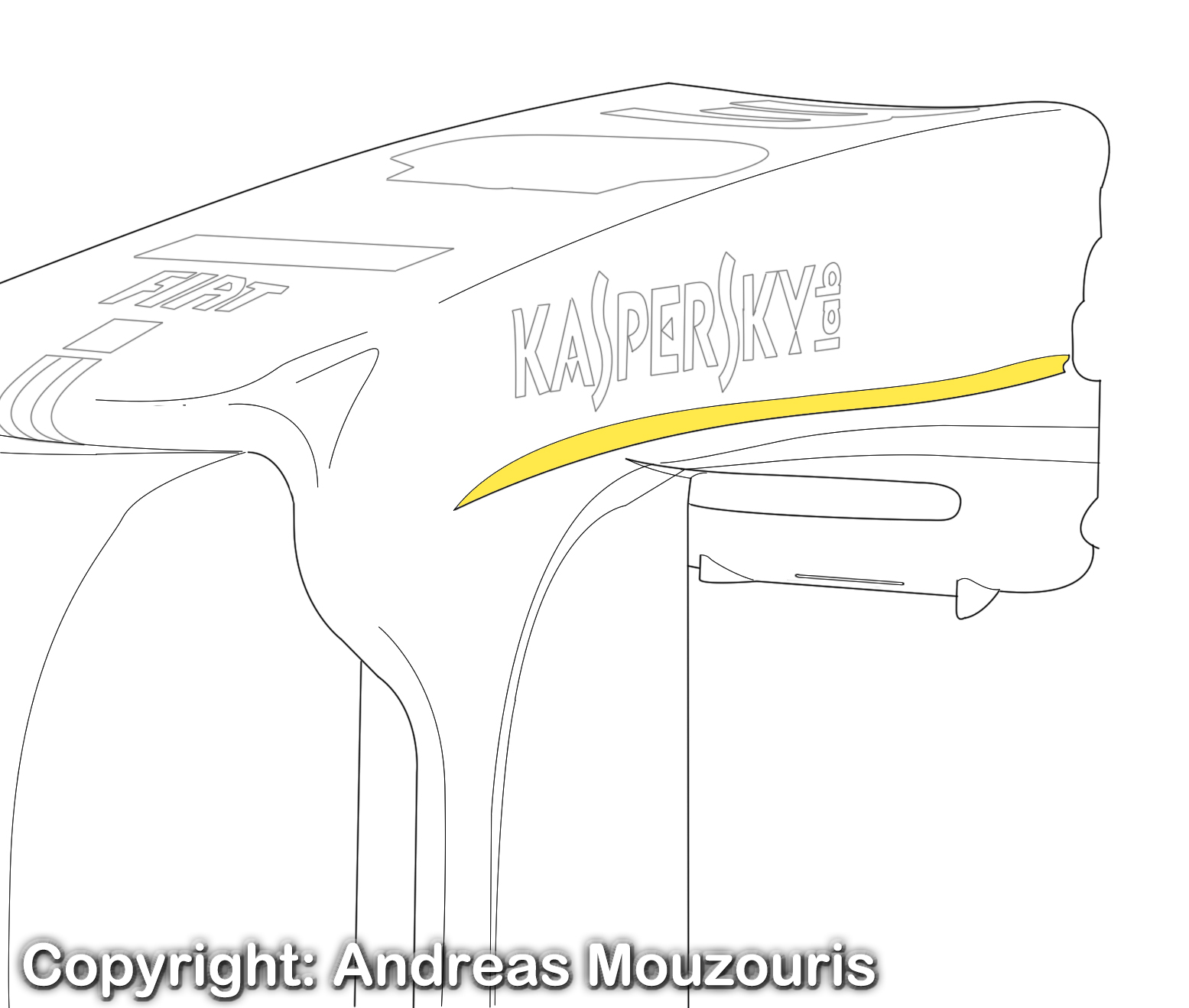

Moving slightly upwards, we will find the new strake running along the sides of the nose that was first introduced in the last day of the first Barcelona test but was slightly revised in the second one. The strakes are there for legality purposes, so they were tested before Melbourne.
On the last day of testing, the team tested more new parts. On of which was the new rear wing. The wing now features smaller v-cutouts on the top of the upper element. In addition, the endplate has been revised and the gills are now slightly smaller than before. Those gills bleed the high pressure air from the inside of the wing to the outside, reducing drag by weakening the strength of the vortex shed at the wing tips.
The last new part tested was a new diffuser which still features the airfoil shaped gurney flap on top of the diffuser’s trailing edge, but it now curves downwards instead of stopping at the edges. Also, the diffuser no longer dips down where the two main vertical strakes are located.
http://technicalf1explained.blogspot.co ... eport.html
- the engine cover is from the F2012. Fitting, since the nose is also not race version for this year.
What are all the cables there for...
