Red Bull RB20

A place to discuss the characteristics of the cars in Formula One, both current as well as historical. Laptimes, driver worshipping and team chatter do not belong here.
venkyhere
venkyhere
14
Joined: 10 Feb 2024, 06:17

Re: Red Bull RB20

Post

Vanja #66 wrote:
19 Jul 2024, 13:11
Front wing and nose completely new, nose tip more rounded, wing scoop slightly reprofiled, outboard angle adjusters

Hungary

https://cdn-8.motorsport.com/images/mgl ... nical.webp

Monaco (same high-load spec)

https://d2n9h2wits23hf.cloudfront.net/i ... /image.jpg
Is the new wing's bottom most element having 'downwash', or is it an optical illusion that my eyes are getting fooled by ?

Matt2725
Matt2725
9
Joined: 02 Mar 2023, 13:12

Re: Red Bull RB20

Post

organic wrote:
19 Jul 2024, 12:13
Behind Halo inlets are gone
As per F1TV, there's new inlets below the airbox behind the driver's head instead.

User avatar
Vanja #66
1562
Joined: 19 Mar 2012, 16:38

Re: Red Bull RB20

Post

venkyhere wrote:
19 Jul 2024, 13:20
Is the new wing's bottom most element having 'downwash', or is it an optical illusion that my eyes are getting fooled by ?
First element often features negative angle (or positive angle in aerospace nomenclature). Think of slats on aircraft wings and why they point down instead of up


And they call it a stall. A STALL!

#DwarvesAreNaturalSprinters
#BlessYouLaddie

User avatar
Holm86
247
Joined: 10 Feb 2010, 03:37
Location: Copenhagen, Denmark

Re: Red Bull RB20

Post

Vanja #66 wrote:
19 Jul 2024, 13:27
venkyhere wrote:
19 Jul 2024, 13:20
Is the new wing's bottom most element having 'downwash', or is it an optical illusion that my eyes are getting fooled by ?
First element often features negative angle (or positive angle in aerospace nomenclature). Think of slats on aircraft wings and why they point down instead of up

https://upload.wikimedia.org/wikipedia/ ... 600pix.jpg

https://www.researchgate.net/profile/Mi ... s-Drag.jpg
Also because of relative angle of attack, the rear wings angle of attack isn't necessarily parallel to the ground, as the engine cover draws some of the air downwards

User avatar
organic
1055
Joined: 08 Jan 2022, 02:24
Location: Cambridge, UK

Re: Red Bull RB20

Post

Matt2725 wrote:
19 Jul 2024, 13:24
organic wrote:
19 Jul 2024, 12:13
Behind Halo inlets are gone
As per F1TV, there's new inlets below the airbox behind the driver's head instead.
Here I guess

Vanja #66 wrote:
19 Jul 2024, 13:11
Front wing and nose completely new, nose tip more rounded, wing scoop slightly reprofiled, outboard angle adjusters

Hungary

https://cdn-8.motorsport.com/images/mgl ... nical.webp

Monaco (same high-load spec)

https://d2n9h2wits23hf.cloudfront.net/i ... /image.jpg
I expected a new front wing for Hungary given timelines involved in the front wing flexing saga. Let's see if it flexes more than previous wings I guess
Last edited by organic on 19 Jul 2024, 14:27, edited 1 time in total.

AR3-GP
AR3-GP
365
Joined: 06 Jul 2021, 01:22

Re: Red Bull RB20

Post

Front wing has a squarish middle section (perhaps a difference in twist angle between the center and outboard sections of the mainplane)

A lion must kill its prey.

Luscion
Luscion
98
Joined: 13 Feb 2023, 01:37

Re: Red Bull RB20

Post




Henk_v
Henk_v
86
Joined: 24 Feb 2022, 13:41

Re: Red Bull RB20

Post

organic wrote:
19 Jul 2024, 14:24
Matt2725 wrote:
19 Jul 2024, 13:24
organic wrote:
19 Jul 2024, 12:13
Behind Halo inlets are gone
As per F1TV, there's new inlets below the airbox behind the driver's head instead.
Here I guess

https://i.imgur.com/n1BsLog.jpeg
Vanja #66 wrote:
19 Jul 2024, 13:11
Front wing and nose completely new, nose tip more rounded, wing scoop slightly reprofiled, outboard angle adjusters

Hungary

https://cdn-8.motorsport.com/images/mgl ... nical.webp

Monaco (same high-load spec)

https://d2n9h2wits23hf.cloudfront.net/i ... /image.jpg
I expected a new front wing for Hungary given timelines involved in the front wing flexing saga. Let's see if it flexes more than previous wings I guess
Yes they are. I was a bit amazed nobody is talking about them until you posed. They are quite clever inlets. They suck in low quality air at a high pressure. It may be these inlets that void the necessity of the halo gulleys

Dr Obbs
Dr Obbs
4
Joined: 13 Apr 2023, 10:38

Re: Red Bull RB20

Post

SiLo wrote:
19 Jul 2024, 13:18
The inlets behind the driver were quite large, where has that cooling capacity gone?

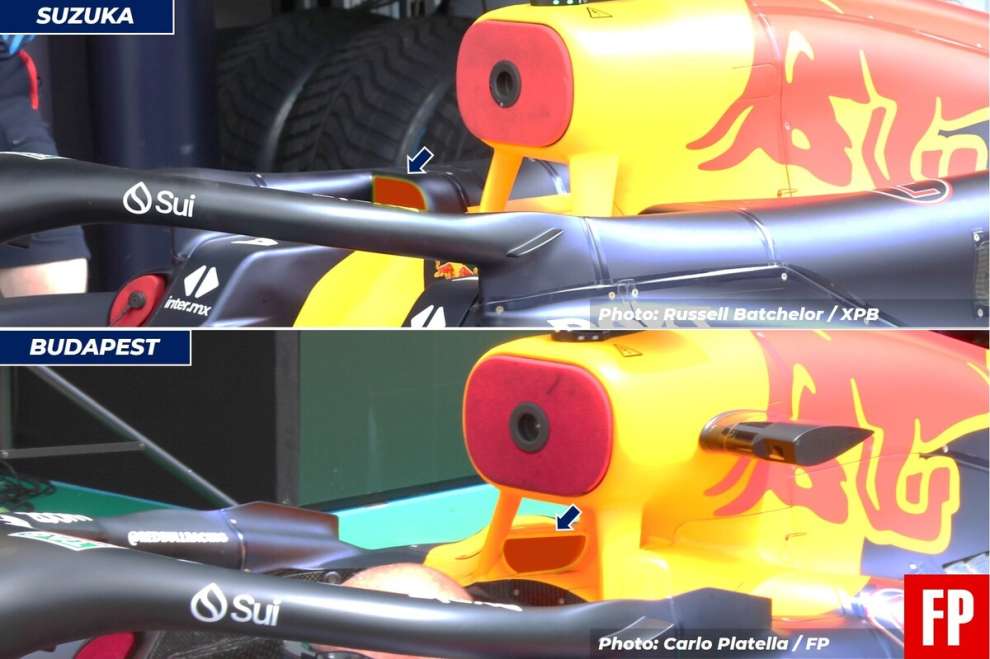

It’s behind the driver still but between the center air box support structure. Carlo Platella on twitter posted these images.

f1isgood
f1isgood
1
Joined: 31 Oct 2022, 19:52
Location: Continental Europe

Re: Red Bull RB20

Post

Henk_v wrote:
19 Jul 2024, 17:00
organic wrote:
19 Jul 2024, 14:24
Matt2725 wrote:
19 Jul 2024, 13:24


As per F1TV, there's new inlets below the airbox behind the driver's head instead.
Here I guess

https://i.imgur.com/n1BsLog.jpeg
Vanja #66 wrote:
19 Jul 2024, 13:11
Front wing and nose completely new, nose tip more rounded, wing scoop slightly reprofiled, outboard angle adjusters

Hungary

https://cdn-8.motorsport.com/images/mgl ... nical.webp

Monaco (same high-load spec)

https://d2n9h2wits23hf.cloudfront.net/i ... /image.jpg
I expected a new front wing for Hungary given timelines involved in the front wing flexing saga. Let's see if it flexes more than previous wings I guess
Yes they are. I was a bit amazed nobody is talking about them until you posed. They are quite clever inlets. They suck in low quality air at a high pressure. It may be these inlets that void the necessity of the halo gulleys
Weren't these inlets behind the driver always there?

User avatar
organic
1055
Joined: 08 Jan 2022, 02:24
Location: Cambridge, UK

Re: Red Bull RB20

Post

f1isgood wrote:
19 Jul 2024, 18:31
Henk_v wrote:
19 Jul 2024, 17:00
organic wrote:
19 Jul 2024, 14:24


Here I guess

https://i.imgur.com/n1BsLog.jpeg



I expected a new front wing for Hungary given timelines involved in the front wing flexing saga. Let's see if it flexes more than previous wings I guess
Yes they are. I was a bit amazed nobody is talking about them until you posed. They are quite clever inlets. They suck in low quality air at a high pressure. It may be these inlets that void the necessity of the halo gulleys
Weren't these inlets behind the driver always there?
Yes but they're now rotated by 90 degrees and eliminated need for the gutters



User avatar
organic
1055
Joined: 08 Jan 2022, 02:24
Location: Cambridge, UK

Re: Red Bull RB20

Post



f1isgood
f1isgood
1
Joined: 31 Oct 2022, 19:52
Location: Continental Europe

Re: Red Bull RB20

Post

organic wrote:
19 Jul 2024, 18:53
f1isgood wrote:
19 Jul 2024, 18:31
Henk_v wrote:
19 Jul 2024, 17:00


Yes they are. I was a bit amazed nobody is talking about them until you posed. They are quite clever inlets. They suck in low quality air at a high pressure. It may be these inlets that void the necessity of the halo gulleys
Weren't these inlets behind the driver always there?
Yes but they're now rotated by 90 degrees and eliminated need for the gutters

https://i.imgur.com/CJK4v5W.jpeg

https://i.imgur.com/28FYZ8z.jpeg
Ah, subtle. Thanks sir!

maxbynature
maxbynature
0
Joined: 26 Jun 2024, 22:45

Re: Red Bull RB20

Post

Few frames from F1TV tech talk


User avatar
ispano6
153
Joined: 09 Mar 2017, 23:56
Location: my playseat

Re: Red Bull RB20

Post
